SC22048
Ürün Adı:Caliper Overhaul Repair Kit
Ürün Ölçüsü/Ağırlığı:1,630 gr

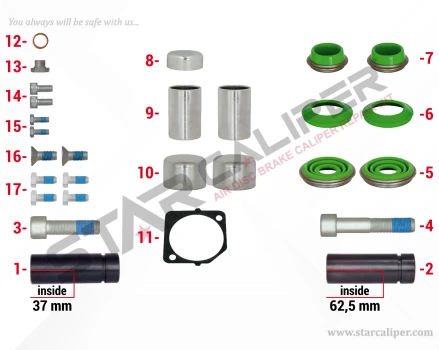

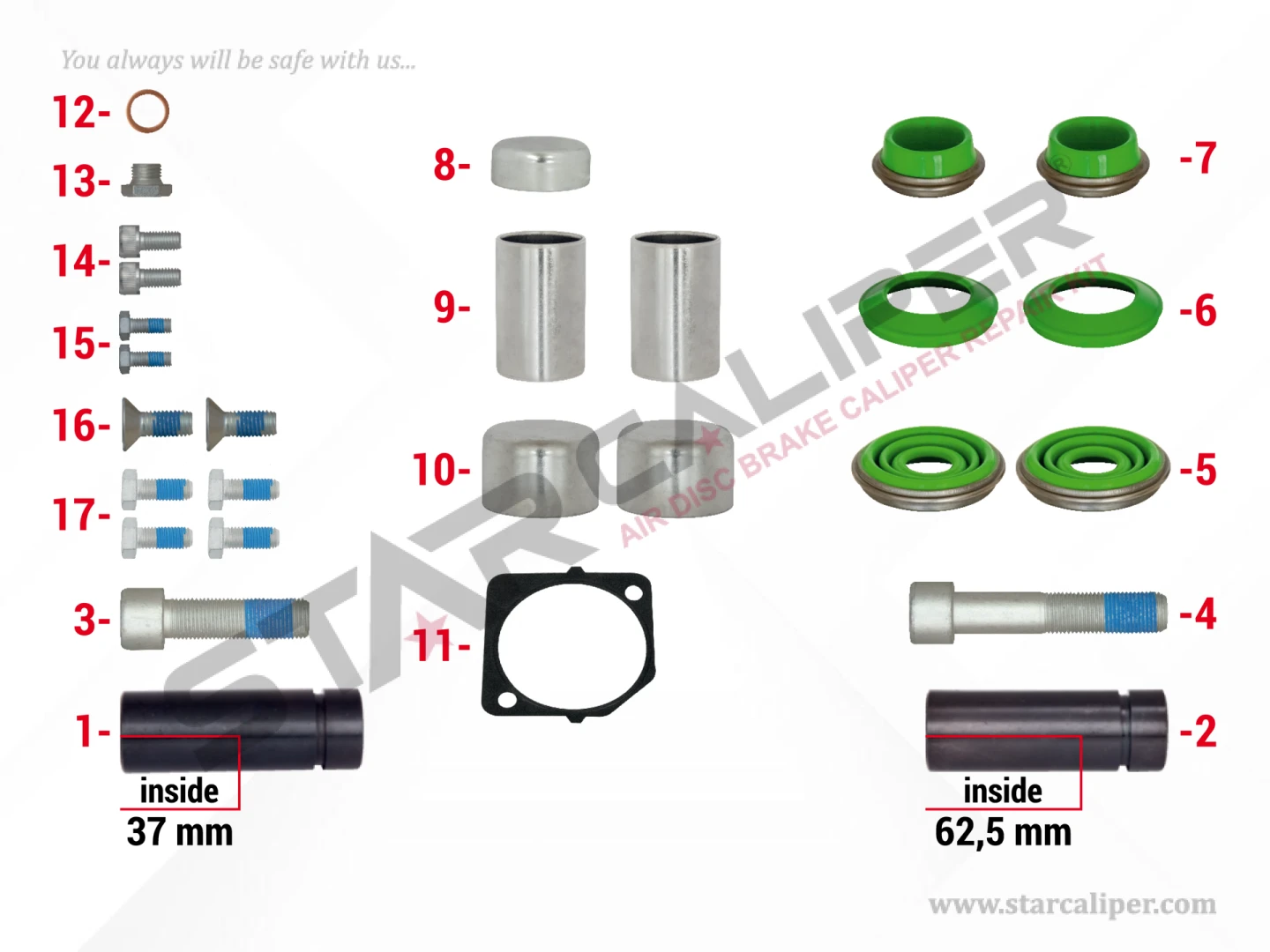

| Sıra | Görsel | Kod | Adı | Boyut |
| 1 |
|
SC22512 | Guide Pin Ø32 x 97/37 mm | 0,340 gr |
| 2 |
|
SC22519 | Guide Pin Ø32 x 97/62,5 mm | 0,285 gr |
| 3 |
|
SC22551 | Bolt M16 x 1,5 x 55 mm | 0,120 gr |
| 4 |
|
SC11513 | Bolt M16 X 1,5 X 80 mm | 0,155 gr |
| 5 |
|
SC22587 | Tappet Dust Excluder | 0,030 gr |
| 6 |
|
SC22616 | Seal | 0,010 gr |
| 7 |
|
SC22588 | Guide Pin Dust Excluder | 0,020 gr |
| 8 |
|
SC22740 | Steel Cap Ø37 x 15 mm | 0,025 gr |
| 9 |
|
SC22533 | Teflon Bush Ø36 x Ø32 x 55 mm | 0,090 gr |
| 10 |
|
SC22543 | Steel Cap Ø41,80 x 29 mm | 0,050 gr |
| 11 |
|
SC22632 | Cover Gasket | 0,005 gr |
| 12 |
|
SC22637 | Washer Ø19/Ø13 mm | 0,001 gr |
| 13 |
|
SC22686 | Plug Bolt | 0,014 gr |
| 14 |
|
SC22683 | Bolt M10 x 1,5 x 20 mm | 0,020 gr |
| 15 |
|
SC22682 | Cover Bolt M8 x 1,25 x 20 mm | 0,012 gr |
| 16 |
|
SC22684 | Cover Bolt M12 x 1,75 x 23 mm | 0,030 gr |
| 17 |
|
SC22685 | Cover Bolt M12 x 1,75 x 29 mm | 0,040 gr |
Not: İlgili parçalardan bazı setlerde bir kaç adet bulunabilir.
| Ad | Değer |
| DF | 1489989 |
| MRT | MCK1171 |
| VLV | AMMCK1171 |
| RNLT | 5021 170 885 |
| AST | 98133542AS |
| CTRPLR | 2799440 |
| FRHF | CF104387 |
